110mm 15 Degree Bend Underground Drainage

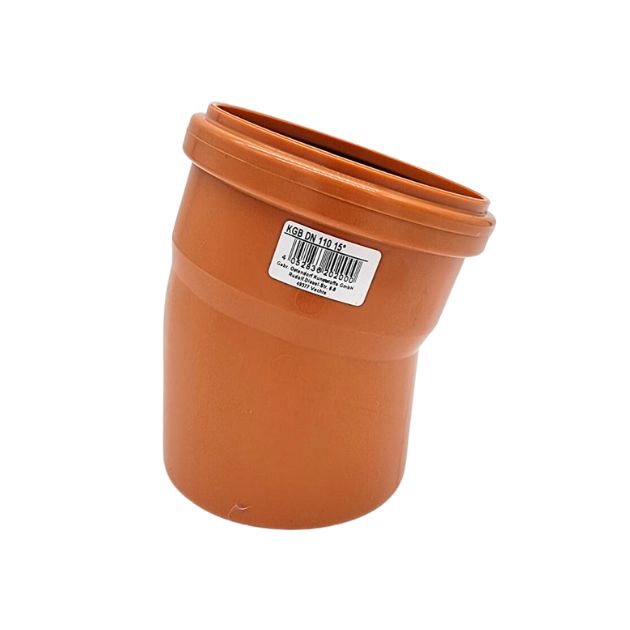

110mm PVC 15° Underground Drainage Bend

A 110mm 15 degree bend is used in underground drainage systems where only a very small change of direction is required. Manufactured from strong PVC and fully kitemarked, this fitting provides a secure, watertight connection while maintaining excellent flow characteristics. Because of its shallow angle, it is ideal for fine adjustments to pipe alignment without introducing turbulence into the system.

This bend connects directly to standard 110mm underground drainage pipe and is commonly used in foul water, surface water and general groundworks installations. Installers often choose a 15-degree bend when setting out long drainage runs or when making minor alignment corrections between chambers or pipe sections.

Applications

The fitting is suitable for foul drainage layouts, sewer connections, landscaping drainage, civil engineering work, long pipe runs requiring gentle changes in direction and general underground installations where accuracy and smooth flow are essential.

Technical Specification

• Diameter: 110mm

• Material: PVC

• Angle: 15 degrees

• Socket Type: Usually single or double socket depending on manufacturer

• Certification: Kitemarked

• Colour: Terracotta (for underground use)

Installation Guidance

Prepare the pipe by cutting it square and chamfering the spigot end to ensure a clean, easy joint. Apply a suitable silicone-based lubricant before inserting the pipe into the socket. Push the pipe fully home and withdraw slightly to allow for natural expansion. A 15-degree bend works particularly well when used to achieve gentle directional alignment without interrupting water flow.

Why Buy From EasyMerchant

EasyMerchant stocks a full range of 110mm bends and fittings with fast UK delivery and competitive pricing. Our experienced team provides trade-level support, and our service is consistently rated Excellent by customers nationwide.

FAQs

Why choose a 15 degree bend?
It provides a very small directional adjustment while keeping flow as smooth as possible.

Is it compatible with other 110mm underground pipe brands?
Yes, most kitemarked systems are cross-compatible.

Can the bend be cut?
No, but it connects to standard 110mm pipe which can be cut to length.

Is it suitable for foul drainage?
Yes, it is suitable for foul and surface water systems.
